American Standard Primary Wire
Name		Operating Temperature	Conductor	Insulation	Standard	Construction
1	GPT	–40 °C to +80 °C	STR Copper	PVC	SAE J1128

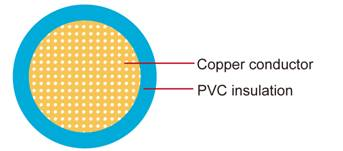

2	TWP	–40 °C to +80 °C	STR Copper	PVC	SAE J1128

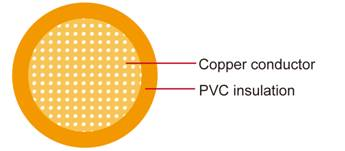

3	HDT	–40 °C to +85 °C	STR Copper	PVC	SAE J1128
4	TXL	–40 °C to +105 °C	STR Copper	XLPE	SAE J1128

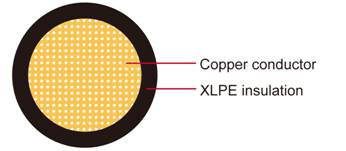

5	GXL	–40 °C to +125 °C	STR Copper	XLPE	SAE J1128

American Standard Battery Cable
Name		Operating Temperature	Conductor	Insulation	Standard	Construction
1	SGT	–40 °C to +80 °C	STR Copper	PVC	SAE J1127
2	SGX	–40 °C to +125 °C	STR Copper	XLPO	SAE J1127
3	STX	–40 °C to +125 °C	STR Copper	XLPE	SAE J1127

American Standard More Type Wire
Name		Operating Temperature	Conductor	Insulation	Standard	Construction

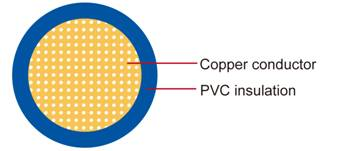

1	WTA	–40 °C to +85 °C	STR Copper	PVC	SAE J1678
2	WXC	–40 °C to +125 °C	STR Copper	XLPE	SAE J1678

Germany Standard Power Wire
Name		Conductor	Insulation	Standard	Operating Temperature	Construction
1	FLALRY	Aluminum	PVC	ISO 6722 Class B	–40 °C to +105 °C
2	FLALRYW	Aluminum	PVC	ISO 6722 Class C	–40 °C to +105 °C
3	FLY	STR Copper	PVC	ISO 6722 Class B	–40 °C to +105 °C
4	FLYW	STR Copper	PVC	ISO 6722 Class C	–40 °C to +105 °C
5	FLRYWD	STR Copper	PVC	ISO 6722 Class B	–40 °C to +105 °C
6	FLRY-A	STR Copper	PVC	ISO 6722 Class B	–40 °C to +105 °C
7	FLRY-B	STR Copper	PVC	ISO 6722 Class B	–40 °C to +105 °C
8	FLR4Y-A/B	STR Copper	Polyamide(PA)	ISO 6722 Class B	–40 °C to +105 °C
9	FLYK	STR Copper	PVC	ISO 6722 Class B	–50 °C to +105 °C
10	FLYWK/FLRYWK	STR Copper	PVC	ISO 6722 Class B	–50 °C to +105 °C
11	FL2X	STR Copper	XLPE	ISO 6722 Class C	–40 °C to +125 °C
12	FLR2X-A	STR Copper	XLPE	ISO 6722 Class C	–40 °C to +125 °C
13	FLR2X-B	STR Copper	XLPE	ISO 6722 Class C	–40 °C to +125 °C
14	FL91Y	STR Copper	TPE-O	ISO 6722 Class C	–40 °C to +125 °C
15	FLRYW	STR Copper	PVC	ISO 6722 Class C	–50 °C to +125 °C
16	FLRYW-B	STR Copper	PVC	ISO 6722 Class C	–50 °C to +125 °C
17	FL4G	STR Copper	EVA	ISO 6722 Class D	–40 °C to +140 °C
18	FLR12Y-A/B	STR Copper	TPE-E	ISO 6722 Class D	–40 °C to +150 °C
19	FLR13Y-A/B	STR Copper	TPE-E	ISO 6722 Class D	–40 °C to +150 °C
20	FLR7Y-A/B	STR Copper	ETFE	ISO 6722 Class E	–40 °C to +180 °C
21	FLR9Y-A/B	STR Copper	PP	ISO 6722 Class C	–40 °C to +180 °C
22	FL2G	STR Copper	Silicon rubber	ISO 6722 Class F	–40 °C to +200 °C
23	FLU6Y	STR Copper	FEP	ISO 6722 Class F	–40 °C to +200 °C
24	IATF	STR Copper	FEP	ISO 6722 Class F	–65 °C to +210 °C
25	FLR51Y-A/B	STR Copper	PFA	ISO 6722 Class H	–40 °C to +250 °C
26	FLR5Y-A/B	STR Copper	PTFE	ISO 6722 Class H	–40 °C to +260 °C
27	FLR14Y	STR Copper	PFA	ISO 6722 Class H	–80 °C to +260 °C

Name		Conductor	Insulation	Sheath	Standard	Operating Temperature	Construction
28	FLYY	STR Copper	PVC	PVC	ISO 6722 Class B	–40 °C to +105 °C
29	FLYY-Single Core	STR Copper	PVC	PVC	ISO 6722 Class B	–40 °C to +105 °C
30	FLYZ	STR Copper	PVC	PVC	ISO 6722 Class B	–40 °C to +105 °C
31	FLRYY	STR Copper	PVC	PVC	ISO 6722 Class B	–40 °C to +105 °C
32	FLR11Y	STR Copper	PVC	TPE-U	ISO 6722 Class B	–40 °C to +105 °C
33	FLRYCY	STR Copper	PVC	PVC	ISO 6722 Class B	–40 °C to +105 °C
34	FLRYDY	STR Copper	PVC	PVC	ISO 6722 Class B	–40 °C to +105 °C
35	FLRYOY	STR Copper	PVC	PVC	ISO 6722 Class B	–40 °C to +105 °C
36	FLRYB11Y	STR Copper	PVC	PUR	ISO 6722 Class B	–40 °C to +105 °C
37	FL4G11Y	STR Copper	EVA	PUR	ISO 6722 Class C	–40 °C to +125 °C
38	FLR2X11Y	STR Copper	XLPE	PUR	ISO 6722 Class C	–40 °C to +125 °C
39	FLR13Y11Y	STR Copper	TPE-E	TPE-U	ISO 6722 Class C	–40 °C to +125 °C
40	FLR31Y11Y	STR Copper	TPE-S	TPE-U	ISO 6722 Class C	–40 °C to +125 °C
41	FL6Y2G	STR Copper	FEP	Silicone Rubber	ISO 6722 Class F	–40 °C to +210 °C

Japan Standard Power Wire
Name		Operating Temperature	Conductor	Insulation	Shield	Sheath	Voltage	Standard	Construction
1	AV-V	–40 °C to +80 °C	STR Copper	Lead Free PVC				HMC ES 91110-05
2	CAVS	–40 °C to +80 °C	STR Copper	PVC				JASO D 611-94
3	AV	–40 °C to +85 °C	STR Copper	PVC				JIS C 3406
4	CAVUS	–40 °C to +80 °C	STR Copper	PVC				JASO D 611-94
5	CIVUS	–40 °C to +85 °C	STR Copper	PVC				JASO D611
6	AVS	–40 °C to +85 °C	STR Copper	PVC				JASO D 611-94
7	AVSS	–40 °C to +85 °C	STR Copper	PVC				JASO D 611-94
8	AVSSH	–40 °C to +100 °C	STR Copper	PVC			25V AC 60v DC	JASO D 611-09 JASO D608
9	EB/HDEB	–40 °C to +100 °C	STR Copper	PVC				JIS C 3406
10	AVSSX/AESSX	–40 °C to +105 °C (AVSSX) –40 °C to +120 °C (AESSX)	STR Copper	XLPVC (AVSSX) XLPE (AESSX)				JASO D 608-92
11	APEX-BS	–40 °C to +120 °C	STR Copper	XLPE	TC Braiding	PVC		JASO D611 ;ES SPEC
12	AESSXF	–45 °C to +120 °C	STR Copper	XLPE			60V	JASO D611 ;ES SPEC
13	AESSXF/ALS	–45 °C to +120 °C	STR Copper	XLPE	AL_Mylar Tape	PVC		JASO D608; HMC ES SPEC
14	AEX/AVX	–40 °C to +120 °C (AEX) –40 °C to +100 °C (AVX)	STR Copper	XLPE				JASO D 608-92
15	AEX-BS	–40 °C to +120 °C	STR Copper	XLPE	TC Braiding	PVC		JASO D608; HMC ES SPEC
16	AEXF	–40 °C to +120 °C	STR Copper	XLPE				JASO D611
17	AEXSF	–40 °C to +135 °C	STR TC	XLPE				ES SPEC
18	AVUHSF	–45 °C to +135 °C	STR Copper	Vinyl	TC Braiding	Vinyl		HKMC ES 91110-05
19	HFSSF-T3	–40 °C to +135 °C	STR Copper	Halogen free compound				ES SPEC
20	HAEXF	–40 °C to +150 °C	STR TC	XLPE				JASO D608
21	AEXHF	–40 °C to +150 °C	STR TC	XLPE			60V	ES SPEC
22	AEXHSF	–45 °C to +150 °C	STR TC	XLPE				HKMC ES 91110-05
23	AHFX	–40 °C to +200 °C	STR TC	Fluoroelastomer				KIS-ES-8093
24	AHFX-BS	–40 °C to +200 °C	STR TC	Fluororubber	TC Braiding	Halogen free Polyolefine	600V	KIS-ES-1121
25	AVXSF	–45 °C to +200 °C	STR TC	XLPVC				HKMC ES 91110-05
